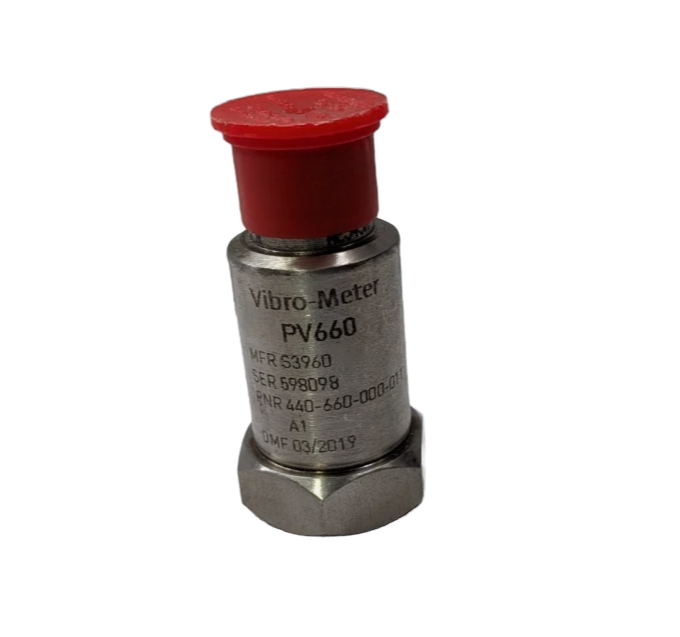

PV660 440-660-000-011-A1

  • PV660 440-660-000-011-A1
  • PV660 440-660-000-011-A1
Miejsce pochodzenia Chiny
Nazwa handlowa Other
Orzecznictwo Certificate of Origin
Numer modelu PV660 440-660-000-011-A1
Minimalne zamówienie 1 szt
Cena $1200
Szczegóły pakowania Oryginalne pudełkowe opakowanie
Czas dostawy 3-5 dni
Zasady płatności T/T
Możliwość Supply 1-99 szt. / 3-5 dni
Szczegóły Produktu
Numer modułu PV660 Numer zamówienia 440-660-000-011-A1
Stan w magazynie Waga 1 KG
Czas realizacji 3-5 dni roboczych Marka Inny
Pochodzenie Chiny Cena sprzedaży 1200 $
Gwarancja 1 rok
Zostaw wiadomość
opis produktu
PV660 440-660-000-011-A1
Product Specifications
Brand Name Other
Model PV660
Ordering Information 440-660-000-011-A1
Catalog Piezoelectric Velocity Sensor
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $1200
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
Technical Features
  • Sensitivity: 4 mV/mm/s ±5%
  • Dynamic Range: 1250 mm/s peak (50 ips peak)
  • Transverse Sensitivity < 5%
  • Linearity < 1% (over full scale)
  • Frequency Response: 5 Hz to 4 kHz (±5%); 1.5 Hz (-3 dB)
  • Resonance Frequency: 18 kHz (Nominal)
  • Supply Voltage: 24 VDC ± 25% (18 ~ 30 VDC)
  • Supply Current: 0.5 ~ 8 mA
  • Bias Voltage: 12 VDC (Nominal)
  • Output Impedance: 150 Ω (Nominal)
  • Residual Electrical Noise ≤ 0.3 mg
  • Grounding Base: Isolation
  • Reverse Polarity Protection: Supported
Product Overview
The PV660 440-660-000-011-A1 is an industrial-grade piezoelectric velocity sensor. As the official upgrade and replacement for the PV102, it offers comprehensive performance improvements while maintaining compatibility.
This sensor is an industrial-standard IEPE (Integrated Electronic Piezoelectric) velocity sensor with built-in integrated electronics. It requires a constant-current power supply and outputs a dynamic AC vibration signal superimposed on a DC bias voltage. Designed for general-purpose vibration measurement, it is typically used for vibration monitoring of Balance of Plant (BOP) equipment.

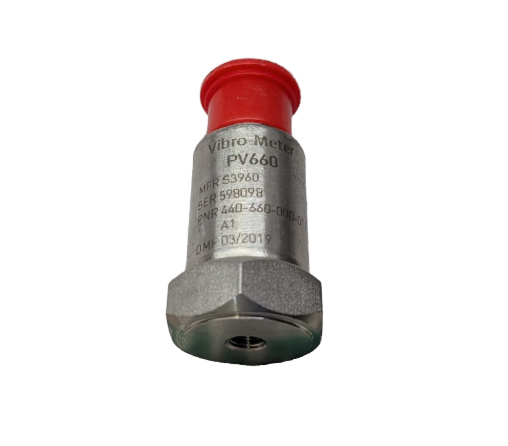

PV660 Piezoelectric Velocity Sensor
Matching Cable Assemblies
The PV660 uses a MIL-C/DTL-5015 circular connector with a 2-pin keyed design. The following cable assemblies are recommended:
Model Description
EC602 Standard version, ETFE twisted-pair shielded cable
EC612 Standard version, ETFE twisted-pair shielded cable with metal braid
EC318 Standard version, RADOX® 125 twisted-pair shielded cable
EC318 (with protective tube) Standard version, RADOX® 125 cable with protective tube
EC319 Splash-proof version, RADOX® 125 twisted-pair shielded cable
EC319 (with Sealed Protective Tubing) Splash-Proof Version, RADOX® 125 Cable with Sealed Protective Tubing (Leak-Proof)
Note: The cable length must be specified when ordering cable assemblies.
PV660 Cable Assembly Options
Case Study
A certain oil and gas company's centrifugal compressor units originally used PV102 sensors for vibration monitoring. After the PV102 was discontinued, the user selected the PV660 440-660-000-011-A1 as a direct replacement. Following the replacement, the sensor sensitivity remained consistent (4 mV/mm/s), eliminating the need to modify the monitoring system configuration and enabling a seamless upgrade.
Frequently Asked Questions
Does this sensor require an external power supply?
Yes. The PV660 is an IEPE-type sensor that requires a constant-current power supply. The recommended supply current is 2-10 mA, and the voltage is 18-30 VDC. The signal and power are transmitted over a single shielded twisted-pair cable (two-wire system).
Does this sensor require periodic calibration?
No. The sensor is dynamically calibrated at the factory and does not require subsequent calibration during use.
What type of signal does the sensor output?
The output is an AC vibration signal superimposed on a DC bias voltage. The AC component represents the vibration velocity (sensitivity: 4 mV/mm/s), and the nominal value of the DC bias voltage is 12 VDC.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
PV660 Sensor Application
